Towable Irrigation System

Towable Irrigation System – Flexible, Cost-Effective Farm Irrigation Solution

Anhui Showy Agricultural Irrigation Technology Co., Ltd. engineers precision irrigation systems designed for modern farms requiring maximum equipment utilization across multiple fields, represented by our versatile Towable Irrigation System. Built on hot-dip galvanized steel compliant with ASTM A123 standards, the equipment features four-wheel and two-wheel steerable configurations with maximum lengths up to 457m. Our 34,000-square-meter production facility manufactures 1,800 center pivot units annually, backed by national intellectual property recognition and First Prize honors in Agricultural Water-Saving Science and Technology. It can be relocated in under 30 minutes using standard tractors, delivering efficient water distribution across irregular or non-contiguous plots while reducing per-hectare installation costs by up to 50%.

System Types and Configurations

We manufacture two primary Towable Irrigation System models to address diverse farming requirements.

The Four-Wheel Towable configuration features maximum machine lengths of 457m and 305m with pipe diameters ranging from 127mm to 219mm. This design uses heavy-duty swivel wheel hubs and reinforced pivot points to handle the mechanical stress of frequent relocation.

The Easy Towable Single-Span system offers maximum length of 85m with 127mm or 168mm pipe diameters. Its compact design suits smaller operations or specialized crop zones requiring flexible irrigation scheduling.

Both configurations support customizable span lengths from 37.5m to 66.5m and overhang options extending to 25m for complete field coverage.​​​​​​​

Technical Specifications

Core Advantages for Your Operation

Your farm benefits from one machine serving multiple fields, dramatically lowering capital expenditure compared to installing separate fixed systems. Our Towable Irrigation System delivers measurable ROI through shared equipment utilization.

Quick relocation capability transforms your irrigation strategy. Standard tractors tow the system between locations in less than one hour using specialized hitch assemblies and ski-mounted pivot points.

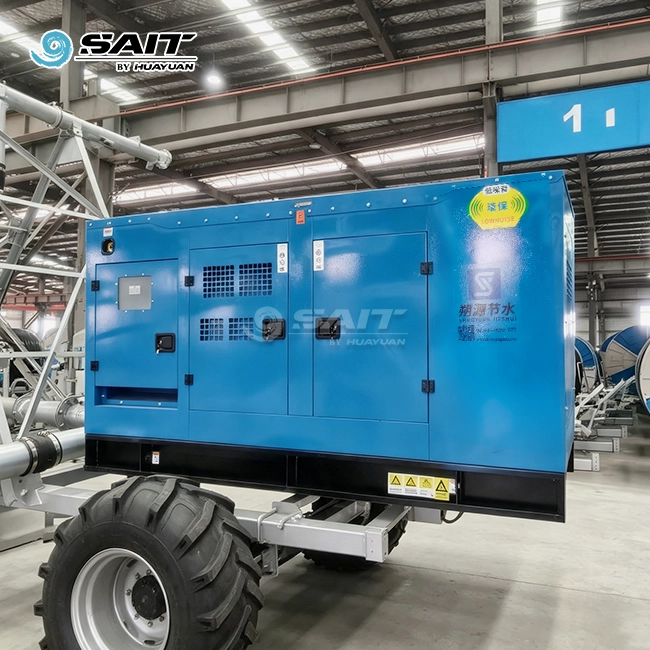

Flexible power supply options accommodate diverse farm infrastructure. Choose grid electricity where available, onboard diesel generators for remote locations, or photovoltaic systems for sustainable operations.

High-flotation tire options prevent soil compaction during transport. Tubeless tire configurations reduce maintenance while delivering reliable performance across varying terrain conditions.

Applications Across Farming Scenarios

Multi-crop rotation operations gain maximum value by moving systems between fields with different growing cycles. Winter wheat irrigation transitions seamlessly to summer soybean coverage using the same equipment.

Leased land operations benefit from mobile assets that relocate when tenancy agreements change. Your irrigation investment remains protected regardless of land access fluctuations.

Forage and pasture management operations deploy systems across non-contiguous grazing paddocks. Rotational irrigation maintains high-quality feed production while supporting livestock management protocols.

Irregular field geometries receive complete coverage through customizable span and overhang configurations. Our engineering team designs layouts matching your specific field boundaries and soil conditions.

Installation and Technical Support

Our experienced technicians provide on-site installation guidance ensuring proper system setup and optimal performance from day one. You receive comprehensive training on relocation procedures, maintenance protocols, and control system operation.

Remote control system upgrades enable precision management of pivot movement and nozzle direction from mobile devices. This technology supports variable rate irrigation strategies across fields with differing soil types or crop water requirements.

Linear motor and linear actuator motor options deliver enhanced control for specialized applications. These upgrades suit operations requiring exact positioning or automated irrigation scheduling.

We maintain compatibility with linear irrigation systems for hybrid configurations. This flexibility expands your coverage options across complex farm layouts requiring multiple irrigation approaches.

Frequently Asked Questions

Q1: What materials ensure long-term durability?
A: We construct all systems using hot-dip galvanized steel meeting ASTM A123 standards. This process provides superior corrosion resistance for decades of reliable service across diverse environmental conditions.

Q2: How quickly can relocation occur between fields?
A: A trained operator completes system preparation, towing, and reset in under 30 minutes for single-span configurations. Multi-span systems typically require 2 to 4 hours with a two-person crew and standard tractor.

Q3: What tractor specifications support safe towing?
A: Standard 60 to 100 HP tractors with adequate drawbar capacity handle most system sizes. Primary considerations include sufficient weight for braking stability on slopes and standard three-point hitch compatibility.

Q4: Can systems operate on varying terrain?
A: Flexible span joints and high-flotation tires maintain structural integrity across undulating terrain. We recommend relatively level towing paths to prevent structural stress during transport between fields.

Q5: What control system options enhance irrigation precision?
A: Standard electrical control panels provide reliable basic operation. Remote control system upgrades enable smartphone-based management of pivot speed, direction, and water application rates for precision agriculture requirements.

Q6: Do systems integrate with existing farm power infrastructure?
A: Three power configurations accommodate your situation: direct grid connection, onboard diesel generators for autonomous operation, or photovoltaic systems for sustainable energy independence.

Contact Anhui Showy Agricultural Irrigation Technology

Ready to reduce irrigation costs while improving field coverage? Explore our flexible Towable Irrigation System. Contact kevin@showyirrigation.com for customized system design and pricing tailored to your farm's specific requirements.

​​​​​​​
