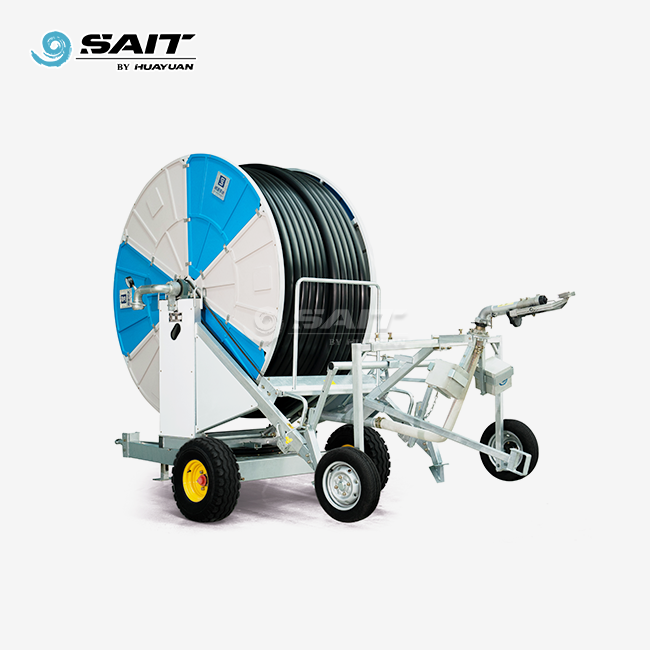

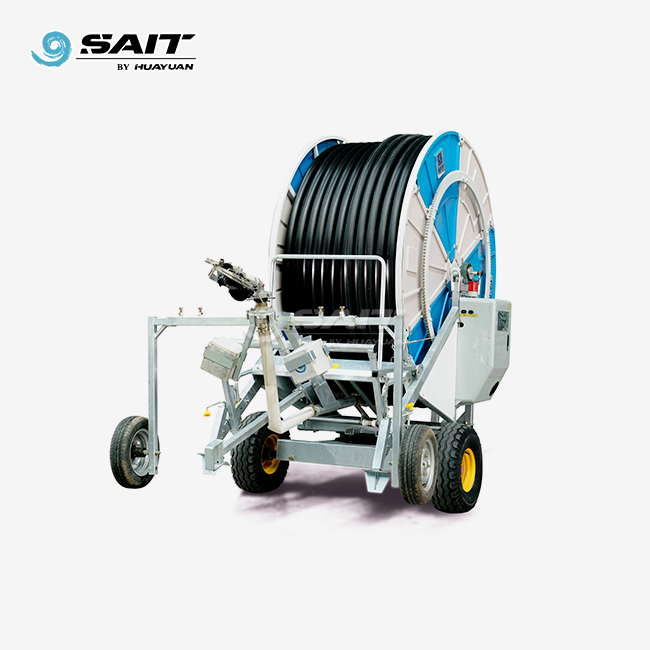

Travelling Irrigator
* Compatible with single-gun sprinkler carriages and multi-sprinkler boom-type carriages for versatile configuration
* Maximum spray width of 40 meters, featuring low operating pressure and reduced wind interference
* Ensures uniform water distribution, fine droplet atomization, and significant water savings over traditional spray guns
* On-site installation support and technical guidance supplied
Travelling Irrigator - Professional Water Turbine Drive Irrigation System
Anhui Showy Agricultural Irrigation Technology Co., Ltd. manufactures advanced Travelling Irrigator systems with water turbine drive technology, delivering exceptional performance across large-scale agricultural operations. Our facility spans 34,000 square meters with an annual production capacity of 14,000 hose reel irrigator units. Each unit achieves water savings exceeding 50% while covering over 1.33 hectares per irrigation cycle. With PE pipe longevity surpassing 15 years and machine service life over 10 years, our systems feature maximum spray widths of 40 meters and adjustable irrigation depths controlled via recovery speed regulation.
How Water Turbine Drive Technology Works
The Travelling Irrigator operates through high-pressure water flowing through PE pipe to the spray gun nozzle. Water force activates the turbine drive mechanism, enabling high retraction speed even at minimal flow rates.
External electricity is not needed for this self-powered system. As the sprinkler carriage moves across your field, the turbine automatically retracts the hose by converting hydraulic energy into mechanical motion.
Droplet atomization ensures uniform distribution across crops. You can adjust irrigation depth by controlling the recovery speed, providing precise water management for different crop requirements.
Versatile Configuration Options

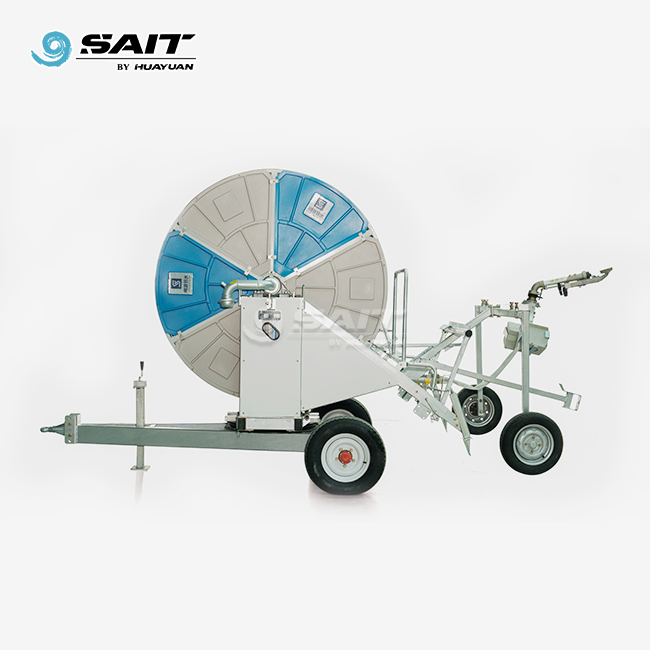

Our systems accommodate both single-gun sprinkler carriages and multi-sprinkler boom-type configurations. This flexibility allows you to match equipment specifications to your specific field layout and crop types.
Single-gun configurations deliver concentrated water application for row crops. Boom-type carriages provide wider coverage patterns, ideal for pastures and broadacre farming operations.
The modular design supports field customization. You select hose length, diameter, sprinkler cart type, and drive components based on your irrigation needs and terrain conditions.
Technical Specifications
| Model | JP-75/300 | JP-75/400 | JP-75/500 | JP-90/300 | JP-90/400 |
|---|---|---|---|---|---|
| PE Pipe Diameter (mm) | 75 | 75 | 75 | 90 | 90 |
| PE Pipe Length (m) | 300 | 400 | 500 | 300 | 400 |
| Effective Irrigation Length (m) | 300 | 400 | 500 | 300 | 400 |
| Inlet Pressure (MPa) | 0.5-1 | 0.5-1 | 0.6-1.1 | 0.5-1 | 0.3-1.2 |
| Nozzle Diameter | 16-22 | 16-22 | 16-22 | 18-24 | 14-28 |
| Nozzle Pressure (MPa) | 0.25-0.5 | 0.25-0.5 | 0.25-0.5 | 0.4-0.6 | 0.25-0.5 |
| Sprinkler Flow Rate (m³/h) | 15.5-34.3 | 15.5-34.3 | 15.5-34.3 | 17.2-48.4 | 10-50 |
| Spray Range (m) | 24-44 | 24-44 | 24-44 | 24-46 | 25-46 |
| Irrigation Width (m) | 47-74 | 47-74 | 47-74 | 43-78 | 43-78 |
| Travel Speed (m/h) | 8-60 | 8-60 | 8-60 | 10-80 | 10-80 |
| Application Rate (mm/h) | >7 | >7 | >7 | >8 | >8 |
Superior Performance Benefits
Your operation gains multiple advantages with our Travelling Irrigator systems. Fine droplet atomization reduces wind interference while ensuring uniform water distribution across your entire field.
Energy expenses are reduced by low operating pressure requirements. Compared to high-pressure alternatives, the system functions effectively with a smaller pump capacity, which reduces your operating costs.
When compared to conventional flood irrigation techniques, water savings surpass 50%. By preventing runoff and deep percolation, precise application control increases crop yields while preserving this important resource.
PE pipe structure is resistant to UV deterioration and corrosion. Because of its resilience, the system will require less maintenance over its longer service life.
Wide Application Range
Rapid coverage capabilities over large acreages are advantageous to large-scale farms. Row crop operations, pastures, and broadacre grain fields are all handled equally effectively by the system.
There are no operating difficulties with irregular terrain. The mobile carrier maintains constant water application rates throughout hills and valleys while adjusting to changing terrain.
Wide-bore nozzle configurations are used by wastewater management systems to distribute wastewater that is high in nutrients. This capacity satisfies environmental compliance requirements while promoting sustainable farming methods.
These systems are used by sports turf fields for municipal parks and golf courses. The design provides accurate moisture control across long, thin irrigation strips while reducing soil compaction.
Frequently Asked Questions
Q: How do I choose the right hose reel irrigation model?
A: Your field size, crop type, water source, irrigation width, and available water flow determine the ideal model. Provide your field dimensions, crop information, and water supply details to our technical team for customized recommendations.
Q: Can the machine be customized to meet my requirements?
A: Yes. We customize hose length, hose diameter, sprinkler cart type, turbine or engine drive, PE pipes, and other configurations to match your crops, field conditions, and specific preferences.
Q: What water source and pressure are required?
A: The system operates with water from rivers, reservoirs, wells, or canals. Working pressure typically ranges from 0.5–1.3 MPa, depending on your sprinkler model and irrigation distance requirements.
Q: Is the hose reel irrigation machine easy to install and operate?
A: Yes. Quick installation and simple operation characterize the design. We provide installation videos, online technical support, and on-site installation with training services to ensure efficient system startup.
Contact Us for Expert Guidance
Ready to enhance your irrigation efficiency with our Travelling Irrigator. Reach out to our technical team for customized irrigation solutions.
Contact our technical team at kevin@showyirrigation.com for customized solutions tailored to your agricultural operation.
Get a tailored irrigation solution for your project — our engineering team is ready to support you from design to installation.
