What is universal linear irrigation system?

A universal linear irrigation system is a mechanized lateral-move irrigation machine designed to travel in a straight line across rectangular or irregularly shaped fields, delivering water uniformly through overhead sprinklers or low-pressure applicators. Unlike a fixed center pivot, this system moves parallel to field boundaries, covering up to 98% of total field area. With 180-degree swing-around capability at the end of each run, a single machine can irrigate an area equal to twice its own length — making it one of the most land-efficient mechanized irrigation options available for large-scale row crop production.

Understanding the Universal Linear Irrigation System

Key Structural Components

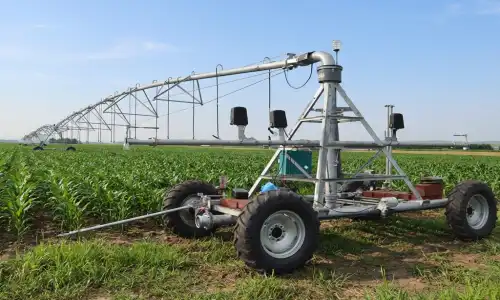

The machine has galvanized steel spans, an electronic control panel, a central drive cart, main water supply pipes with diameters of 168mm or 219mm, and sprinkler systems that hang from the ceiling. The span lengths range from 37.5m to 54.9m, and the overhangs can be anywhere from 2.7m to 25m. The longest part of the machine is 973 meters long. The central cart can be put at either the end or the middle of the machine, which gives workers more options for entering fields and turning.

Guidance and Power Configuration

There are three types of guidance modes: cable guidance, furrow guidance, and satellite guidance using BDS/GPS dual-mode tracking. During a 1 km run, the lateral deviation stays within 10 cm. The machine gets power from either a towed wire or a diesel engine on board, which is useful for fields that are far away and don't have access to the power grid. Depending on the infrastructure in the area, the water supply can be connected through a canal intake or a drag hose. The electronic control system can be set up in a standard way or fully remotely, letting operators check the machine's alignment, travel speed, and water application rate from afar. HUAYUAN SAIT combines BeiDou tracking with Internet of Things (IoT) sensors to achieve an irrigation uniformity coefficient above 90%. This is a standard that is significantly higher than the average in the business. This level of accuracy directly cuts down on water waste and helps crops grow evenly across the whole area.

Automation and Control Technology

The swing-around linear electronic control system comes in a standard configuration or a full remote-control version, allowing operators to monitor travel speed, water application rate, and machine alignment from a distance. HUAYUAN SAIT integrates BeiDou navigation with IoT sensors, achieving an irrigation uniformity coefficient above 90% — a standard that exceeds the industry average by a measurable margin. This level of precision directly reduces water waste and supports uniform crop development across the entire span.

Benefits and Performance of Universal Linear Irrigation

Water-Use Efficiency

According to information released by the Food and Agriculture Organization, lateral-move systems use 30–50% less water than surface flood irrigation. The even application pattern gets rid of two problems that always lower the quality of the crops grown in flood-irrigated fields: too much water in low spots and not enough water near the field edges.

Here are the main ways this system improves performance on farms that are already running:

• 100% rectangular field coverage: The linear travel path matches field geometry, eliminating the unirrigated corners that reduce a center pivot's effective area to roughly 78% of total field size.
• Dual operating modes: The machine runs in both linear-move and center pivot modes, so one unit covers field configurations that would otherwise require two separate machines — cutting equipment investment by as much as 50%.
• High-clearance span option: A tall-clearance span configuration accommodates crops such as maize or sunflowers without physical contact during passes.

These performance traits immediately address the main issue that rectangular field owners have, which is getting full coverage without having to buy more machines or deal with corner losses.

Maintenance and Longevity

For yearly maintenance on the drivetrain, the gearbox oil needs to be changed, and the tire pressure needs to be checked. In its four-speed gearbox for a water turbine, HUAYUAN SAIT uses a special formula for wear-resistant gears that keeps speeds stable and increases the time between service visits. The hot-dip galvanized covering is thicker than 80μm, which is much thicker than the minimum requirement set by ISO 1461. This creates a barrier against rust that is good for long-term use outside in wet, sandy, or salty conditions.

Comparison With Other Irrigation Systems: Making the Right Choice

Linear Move vs. Center Pivot

​​​​​​​

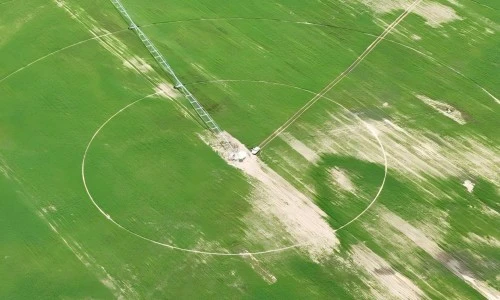

A middle pivot spans a circle, but doesn't water the corners of the field. For a rectangular 500-hectare block, losing that point means less ground that can be used for farming. The universal linear irrigation machine moves laterally to cover the whole square, and with its 180-degree swing-around feature, it can serve blocks next to each other without having to take them apart.

Linear Move vs. Drip Irrigation

Drip systems give exact root-zone moisture, but they cost a lot per hectare to install and need clean water with low particulate load. Lateral-move irrigation can use water from canals because it has built-in suction filtration. It can also handle slopes of up to 15% with flexible hook-and-receiver joints, and it can be used over longer fields than drip infrastructure can afford.

Cost and ROI Considerations

A lateral-move machine usually has a lower total cost per irrigated hectare than a drip machine for large rectangular fields bigger than 200 hectares. This is especially true when the swing-around feature lets one machine serve two adjacent parcels. The ability to work in both pivot and linear modes cuts down on the number of machines needed for each project. This directly lowers the cost of capital, which procurement teams can figure out using field geometry before making a purchase.

Procuring a Universal Linear Irrigation System: A Buyer's Guide

Specifications to Verify Before Ordering

Buyers should make sure that the span length fits the field width, that the wheel size (11.2-24, 14.9-24, or 16.9-24 in flat or tubed tires) is right for the ground, and that the water supply can be connected in the right way. When buying land with a slope, it is common to ask for proof of a structural load test and check that the 15% slope limit license is correct.

Supplier Evaluation Criteria

A trustworthy provider should have plant certifications that can be tracked, full export paperwork, and instructions and training for operators that are relevant to the local market. HUAYUAN SAIT has more than 130 patents, including 35 invention patents and 15 foreign patents. These were created through joint study with China Agricultural University and funding from the national key R&D program. This level of technical progress gives every machine that is shipped a solid engineering base that can be checked.

After-Sales Support Structure

HUAYUAN SAIT provides comprehensive after-sales support for its swing-around linear systems: on-site installation control, a full one-year guarantee, low-cost part replacement for three years, and lifetime access to extra parts at factory cost prices. Technicians can diagnose issues remotely via the SAIT platform without needing to visit the site, which is a major benefit for buyers operating in rural farming areas.

Future Trends and Technological Advancements in Linear Irrigation

Smart Irrigation Integration

IoT-enabled field sensors now send real-time data about the weather and soil moisture directly to the machine's control system. This lets the speed and amount of application be changed automatically. This cuts down on over-watering, which is one cause of some nutrient loss in fields that are actively managed.

AI-Driven Water Management

AI programs use past output data and up-to-date soil maps to make irrigation plans with different rates. For farms that grow seeds and high-value vegetables, this level of accuracy directly helps crops mature evenly and lowers the amount of chemicals needed by ensuring accurate chemigation delivery.

Market Outlook for B2B Buyers

Policies in the Middle East that limit water use, big restoration projects in North Africa, and government-backed water-saving programs across Central Asia are all driving up the demand for automated irrigation around the world. When buyers choose modular platforms, the power supply, guidance mode, and water supply can be changed without having to replace the structural frame. This gives buyers long-term asset flexibility as field configurations or project needs alter.

Conclusion

A universal linear irrigation lateral-move machine built on a modular platform gives procurement teams a single asset that can work in fields with straight lines, irregular boundaries, and sequences of parcels next to each other without the need for extra equipment. There is quantitative evidence to support the performance case: the field covers 98% of its total area, the rate of missed irrigation is less than 5%, and the regularity of irrigation is above 90%. Because HUAYUAN SAIT has been making things for 20 years, has more than 130 patents, and sells directly from the plant, it is a good choice for distributors, project developers, and government irrigation officials planning their next procurement cycle.

FAQ

Q1: Can a lateral-move system handle sloped terrain?

Yes. The machine can work on slopes up to 15% thanks to its flexible hook-and-receiver joints. Before shipping, structural load tests make sure that this tolerance is correct.

Q2: What is the difference between canal water supply and drag hose supply?

The canal water supply gets its water from an open ditch that runs next to the field. The water can travel an infinite distance, but it needs to be filtered by suction to protect the spray nozzles. The water from a drag hose source is better, but it's only useful for machine runs up to 400m.

Q3: How does the 180-degree swing-around work?

When the machine is still, the center drive cart can turn 90 to 180 degrees, moving the machine to cover a nearby field block. This sequence is handled automatically by a PLC control module.

Q4: How is water application uniformity measured?

ASAE S398-based catch-can tests determine how deep an application goes across the whole range. The uniformity coefficients for HUAYUAN SAIT systems are always above 90%.
