High-Performance Disc Filter for Precision Agricultural Irrigation

Anhui Showy Agricultural Irrigation Technology Co., Ltd. delivers enterprise-grade Disc filter systems engineered for integrated automatic irrigation and fertigation applications. Operating within a 0.2-0.7MPa pressure range, our filtration solutions feature DN100 centrifugal pre-filtration combined with DN100 automatic self-cleaning filters offering 120/130 mesh precision. These filters are produced in our 34,000-square-meter accredited workshop, which can produce more than 14,000 irrigation system units annually. They easily interface with mobile fertilizer injection platforms and smart head control systems. Large-scale open fields, orchards, and greenhouse facilities in challenging agricultural areas can receive expert-level water management thanks to our sophisticated software platform, which enables automated control.

How Disc Filter Technology Solves Modern Irrigation Challenges

Traditional screen filters struggle with organic debris and algae common in surface water sources. Your irrigation system faces constant threats from suspended solids that clog emitters and reduce efficiency.

Our Disc filter utilizes compressed, grooved plastic discs creating a three-dimensional filtration matrix. This depth filtration approach traps particles ranging from 5 to 400 microns with superior efficiency. Unlike surface-based alternatives, the disc design prevents rapid clogging from fibrous contaminants.

Heavy particles are forced away from the disk stack by the centrifugal force during filtration. The automated backwash cycle decompresses the disks for thorough cleaning when the differential pressure reaches 0.5 bar. This minimizes maintenance downtime by up to 70% and guaranties continued functioning without human intervention.

Technical Specifications and System Integration

Our filtration systems integrate directly with intelligent fertigation platforms for complete agricultural water management:

The modular design allows you to expand capacity without replacing your entire infrastructure. Additional filter pods can be added as your operation scales.

Superior Materials and Construction Standards

UV-resistant polypropylene construction ensures long-term durability in outdoor agricultural environments. Your system withstands chemical exposure from various soluble and liquid fertilizers without degradation.

High-grade stainless steel pressure pumps deliver safe, reliable operation under variable flow conditions. The fully enclosed design provides water and dust resistance while simplifying maintenance procedures.

All components undergo hydrostatic pressure testing at 1.5 times maximum rated pressure. Groove precision mapping ensures exact micron specifications through laser scanning verification. This quality control process guarantees consistent performance across thousands of operating hours.

Intelligent Automation and Remote Control Capabilities

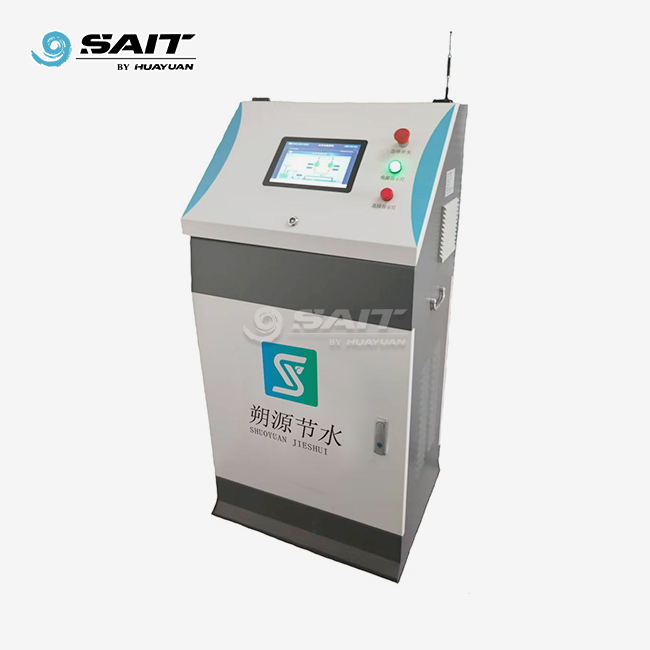

The advanced software platform transforms complex irrigation management into simple, automated processes. You control everything through an intuitive 10-inch capacitive touchscreen or remotely via mobile app.

Your Disc filter system communicates through 4G wireless networks using Modbus RTU protocol. Real-time monitoring displays differential pressure, flow rates, and backwash cycles. The ARM-based controller adjusts operations automatically based on your preset parameters.

Variable frequency drive technology optimizes pump performance across different pressure and flow scenarios. The system adapts to irrigation demand fluctuations while maintaining consistent filtration efficiency. Three-phase smart energy metering tracks power consumption for operational cost analysis.

Comprehensive Fertigation Integration

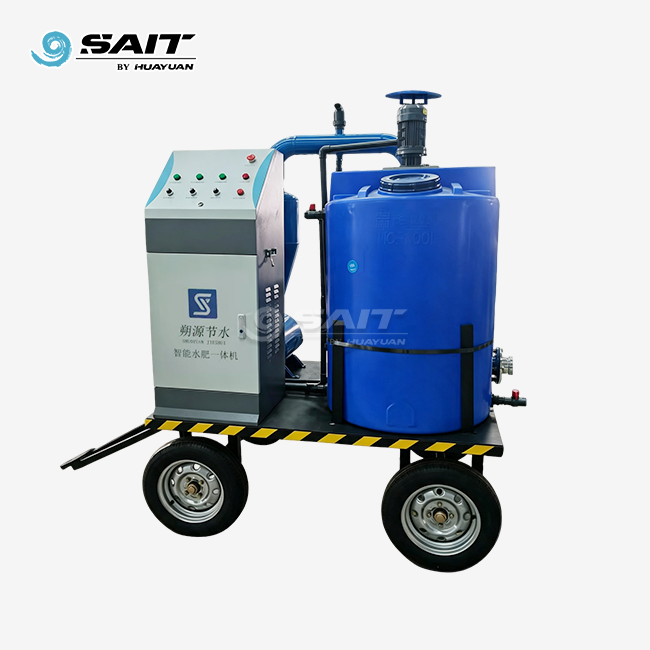

The integrated head unit combines pump control, filtration, and fertilizer injection into one compact system. This eliminates complex plumbing and reduces potential failure points.

Fertilizer injection channels accommodate DN40 connections with ultrasonic flow measurement for precise nutrient delivery. Adjustment ranges from 10% to 100% ensure compatibility with varying crop requirements and growth stages.

The system works seamlessly with both soluble granular and liquid fertilizer formulations. Intelligent mixing algorithms prevent fertilizer precipitation and ensure uniform distribution across your entire irrigation zone.

Frequently Asked Questions

Q: How does the automatic backwash cycle work?
A: The system monitors differential pressure continuously. When it reaches 0.5 bar, the controller automatically decompresses the disc stack while reversing flow direction. This removes trapped particles without interrupting irrigation to other zones.

Q: What maintenance does the filtration unit require?
A: Annual inspection of hydraulic valves and manifold seals is recommended. The grooved discs themselves are permanent components requiring no periodic replacement under normal agricultural conditions.

Q: Can the system handle high organic loads from pond or canal water?
A: Yes, the three-dimensional filtration matrix excels at trapping organic debris and algae that rapidly clog traditional screen filters. The centrifugal pre-filter removes heavier particles before they reach the disc assembly.

Q: Is remote monitoring included with the control system?
A: The 4G-enabled controller provides full remote access through our mobile app. You receive alerts for backwash cycles, pressure anomalies, and system status updates from anywhere with cellular coverage.

Q: How do I expand the system as my operation grows?
A: The modular manifold design accepts additional filter pods without infrastructure replacement. Contact our technical team for capacity assessment and expansion planning specific to your flow requirements.

Partner with Agricultural Irrigation Experts

Anhui Showy Agricultural Irrigation Technology Co., Ltd. brings decades of manufacturing excellence and intelligent irrigation innovation to your operation. Our Disc filter systems represent the convergence of robust mechanical engineering and advanced digital control.

Recognized as a National Intellectual Property Advantageous Enterprise with multiple industry awards, we lead irrigation equipment standards development in China. Your investment benefits from our 60,000-square-meter production facility and comprehensive quality management systems.

​​​​​​​

Contact Us for Custom Solutions

Ready to upgrade your irrigation filtration system? Our engineering team provides technical consultation and customized solutions tailored to your specific water quality and flow requirements. Reach us at kevin@showyirrigation.com for detailed specifications and pricing.
