Best pivot for tall crops? High-profile vs standard pivot clearance

When irrigation equipment physically damages the crop canopy it is supposed to nourish, every revolution costs yield. For operations growing mature corn, sugarcane, or sunflowers, a high-profile center pivot is not a premium upgrade — it is a structural necessity. This article breaks down the real clearance differences between high-profile and standard pivot configurations, walks through a practical selection framework for commercial buyers, and explains why tower height is only one variable in a far more consequential procurement decision.

Understanding Center Pivot Irrigation Systems

A center pivot device turns a lateral pipeline, bringing water around a set central point, spreading water evenly over a circle. The height of the self-propelled tower units determines how much vertical room there is between the bottom of the pipeline and the top of the crop canopy. The rotating arm sits on these units.

Standard vs. High-Profile: The Core Structural Distinction

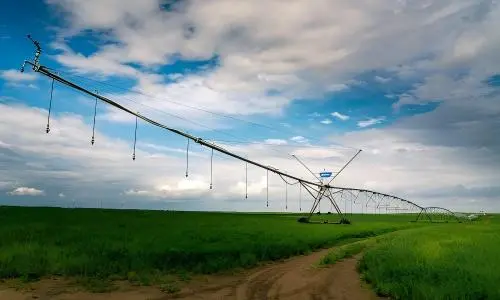

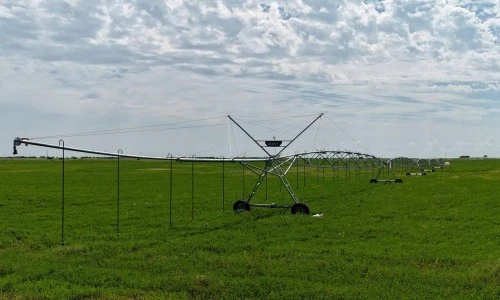

The span height of a standard pivot is about 2.1 meters, which is enough for low-growing plants like wheat, soybeans, and early-season veggies. High-profile models raise the height of the tower legs to 2.9 m, 3.8 m, or 4.5 m, which gives crops much more room than the 4 m that mature corn and late-season sugarcane need. The HUAYUAN SAIT pivot line can handle all four profile types: standard, low, high, and ultrahigh. Its span lengths range from 37.5 m to 66.5 m, which gives procurement engineers exact control over the canopy clearance and coverage area.

High-Profile vs Standard Pivot Clearance — Key Differences and Implications

The difference between a useful irrigation pass and a damaging one is the clearance height. In the U.S. Corn Belt, commercial corn usually grows to a height of 2.8 to 3.2 meters at the ear stage. A normal 2.1-meter tower can't go over that canopy without directly cutting the plants off. A High clearance pivot is engineered to navigate this mature crop height without causing damage, which directly addresses the mechanical damage issue noted in the following USDA data. According to data from the USDA on crop loss, mechanical damage during late-season irrigation is a major cause of lower yields in high-canopy crops. This is a cost that quickly adds up for operations that manage 500 hectares or more.

Structural Specifications That Affect Real-World Performance

Besides the height, an elevated pivot's structural engineering shows whether the clearance edge will last or break easily. According to ASTM A123 standards, HUAYUAN SAIT's high-clearance systems are made of hot-dip galvanized steel that has a zinc coating that is at least 80 μm thick. Truss rods, which come in 20 mm and 22 mm diameters, keep the load on the span even and stop the tower from leaning to the side as it gets taller. Because the center of gravity is higher, the wheels are wider to make up for it, and armored UL-listed cable protects the electrical system from field abrasion. Because of these choices about structure, the system is expected to last longer than 20 years, even in the harsh conditions created by dense crop canopies.

Water Distribution Efficiency Under Elevated Configurations

A common worry among agronomists is whether putting the pivot above the cover makes the spread less even. The answer is totally based on how well the sprinkler package is calibrated. The working height must be changed so that drop-hose lengths and nozzle packages don't move around too much in the wind and the spread stays even above 90%. The SAIT Smart Control System from HUAYUAN SAIT adjusts the rate of irrigation based on how the soil is infiltrating in real time. This ensures accurate variable-rate irrigation no matter what the tower shape is. Multiple large-scale trials have shown that the system saves over 70% more water than traditional flood irrigation. It also allows for combined water-fertilizer operation for the best nutrient uptake.

How to Choose the Right Pivot for Your Farmland: Decision-Making Criteria?

In order to choose between a normal pivot setup and a high-profile center pivot setup, you have to look at a lot of interdependent variables at the same time. The following factors give procurement managers who are in charge of multi-unit projects an organized way to screen suppliers.

At the specification stage, these are the main choice factors that should be given the most weight:

• Peak canopy height at irrigation timing: Measure maximum crop height at the growth stage when irrigation frequency is highest. If that height exceeds 2.0 m, a standard 2.1 m span height creates an unacceptable collision risk. Sugarcane at the harvest stage commonly exceeds 3.5 m; late corn regularly clears 3.0 m. Selecting a span height of 3.8 m or 4.5 m provides the buffer required to operate through peak canopy without interruption.
• Field topography and terrain variation: On undulating terrain with significant elevation shifts, even a mid-profile tower may contact the ground surface mid-span. HUAYUAN SAIT's all-terrain design operates stably from -20°C to 60°C and accommodates rugged field conditions where standard systems would face structural interference.
• Water efficiency targets and automation requirements: The SAIT Smart Control System enables remote scheduling, zone-based irrigation, and BeiDou-guided alignment with a missed irrigation rate below 5%. For operations integrating third-party SCADA platforms, the system supports full API connectivity, which is especially relevant for government procurement projects and EPC contractors requiring unified farm management dashboards.
• Total cost of ownership across the system lifespan: A unit covering up to 200 hectares per irrigation cycle, with 20+ years of service life and factory-cost spare parts supply, changes the per-hectare cost calculation substantially. Main pipeline options in 5" (127 mm), 6-5/8" (168 mm), and 8-5/8" (219 mm) diameters allow flow-rate optimization for different field sizes without over-specifying infrastructure.

All of these factors determine if a high-clearance investment pays for itself within two to three growing seasons. In large sugarcane and corn businesses, this is usually the case.

Installation, Maintenance, and Cost Considerations

Site Assessment and Infrastructure Integration

Before installation, a trained site inspection should make a map of the field's radius, the soil's bearing capacity, the power supply's location, and the highest crop that can be grown in each watering zone. On-site installation help and technical advice are standard services at HUAYUAN SAIT; they are not an extra. The system's overhang length choices, which range from 2.7 m to 25 m, let designers precisely align the pivot arm's end with field edges, cutting down on waste around the edges that isn't watered.

Routine Maintenance for High-Profile Units

For High clearance pivot units, higher leverage forces are felt at the base of the extended legs in elevated tower configurations. Inspection of structural bolts on tower leg extensions, dynamic balance calibration to stop lateral drift during rotation, and stress monitoring of the drivetrain under full water load should be at the top of the list for maintenance. HUAYUAN SAIT's after-sales program includes a full guarantee for one year, low-cost upkeep with parts replacement for three years, and a lifelong supply of extra parts at factory cost. This structure greatly lowers the risk of unplanned downtime for fleets with multiple units.

Leading Brands and Suppliers for High-Profile Center Pivots

A small group of well-known companies controls most of the global raised pivot market. Valley Irrigation, Lindsay Corporation, and Reinke Manufacturing all have long records and strong networks of dealers across North America. For foreign business-to-business buyers, especially those looking for supplies for government infrastructure projects, EPC projects, or private-label distribution, Chinese makers have closed a big technology gap and are now offering competitive unit prices and a wide range of OEM setups.

HUAYUAN SAIT has been making things for 20 years, can make 1,800 pivot and linear systems a year, and has its own research and development platform that was created with help from China Agricultural University. There are more than 130 patents owned by the company. There are 35 new patents and 15 foreign patents. Because it is close to Xuzhou, which is a major logistics hub in the Huaihai Economic Zone, it can offer delivery times that are always shorter than the 60–90 day lead times that most competing Chinese suppliers have. You can get OEM and ODM services with a one-unit minimum order, and you can put your own logo on the tower boxes, control screens, and truss sections.

Conclusion

Crop clearance is not an optional feature; it is a key factor in ensuring crop safety. Standard pivots work well for low-canopy crops, but they have real practical and economic costs when used in corn, sugarcane, orchards that are already fully grown. When designed and kept up properly, elevated pivot designs get rid of that risk while providing precise irrigation regularity that meets or beats standard system performance. The SAIT automation platform, customizable profile range, and 80 μm+ hot-dip galvanized construction of HUAYUAN SAIT make it a technically sound and commercially viable choice for large-scale operations and project procurement teams looking at high-profile center pivot systems for high-clearance automated irrigation.

FAQ

Q1: What clearance height does a high-profile center pivot typically provide?

High-profile designs usually give a vertical clearance of 4.5 to 5.2 meters, which is enough to cover mature sugarcane and 12-foot corn types without touching the top.

Q2: Does increased tower height reduce wind stability?

Engineers make up for the tower's high center of gravity by making the wheelbase wider. HUAYUAN SAIT systems are built to handle high wind loads when they are parked and have a wheelbase of up to 4.5 meters.

Q3: Can a standard pivot be converted to a high-profile configuration?

Tower leg extensions can raise the clearance height, but the current spans, gears, and drive motors need to be checked to make sure they can safely handle the extra weight.

Q4: Does elevated clearance compromise water application uniformity?

Not until the watering package is properly set up again. To keep wind drift to a minimum, the length of the drop hose and the type of nozzle used must match the working height. The adaptive control system at SAIT keeps the distribution uniformity above 90%.

Request a Custom Quote from HUAYUAN SAIT — High-Profile Center Pivot Manufacturer

Engineered high-profile center pivot systems from HUAYUAN SAIT can be set up to fit your crop height, field layout, and automation needs. With 20 years of experience making things, ISO 9001 compliance, flexible OEM capabilities, and a promise to always provide extra parts, we can help procurement teams with everything from a trial unit to a full fleet. To get specifications and a quote for your specific project, email our technical sales team at kevin@showyirrigation.com.

References

1. USDA National Agricultural Statistics Service. Irrigation and Water Management Survey. 2018.

2. American Society of Agricultural and Biological Engineers. ASABE Standard S366.2: Irrigation Systems — Center Pivot and Lateral Move. 2017.

3. Evans, R.G., & King, B.A. Site-Specific Sprinkler Irrigation in a Water-Limited Future. Transactions of the ASABE, 55(2), 493–504. 2012.

4. Camp, C.R., Sadler, E.J., & Busscher, W.J. A Comparison of Uniformity Measures for Drip and Precision Irrigation Systems. Transactions of the ASABE, 40(4), 1013–1020. 1997.

5. Food and Agriculture Organization of the United Nations. Water for Sustainable Food and Agriculture. FAO, Rome. 2017.

6. Howell, T.A. Enhancing Water Use Efficiency in Irrigated Agriculture. Agronomy Journal, 93(2), 281–289. 2001.
